Web-Enabled Instrumentation-Grade Data Acquisition

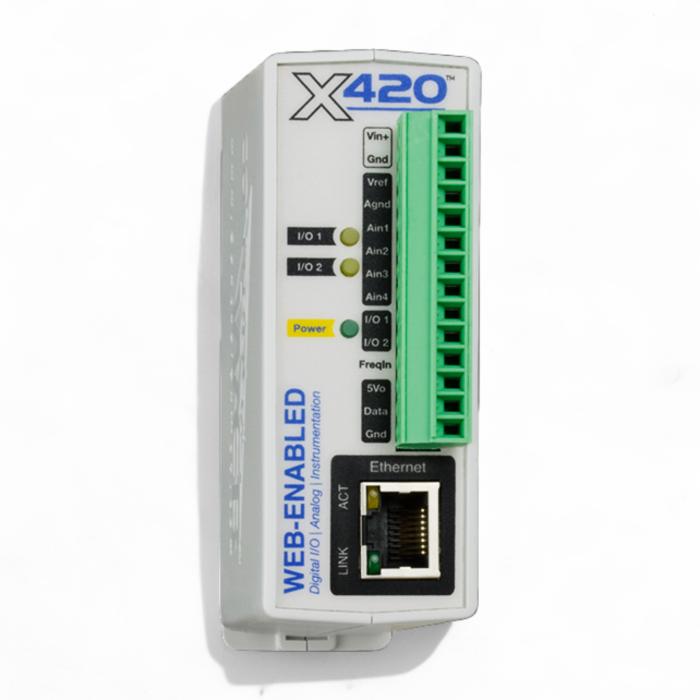

The X-420™ is a fully-featured, Ethernet I/O monitoring and data acquisition module with an innovative solution for creating advance logic (tasks) without the need for scripting. The X-420 supports peer-to-peer communication between ControlByWeb modules. It communicates with up to 32 modules and allows you to monitor and control up to 100 I/O points. The X-420 has a built-in web server so it can be set up, controlled, and monitored using a standard web browser (or by using the CBW Mobile smartphone app).

The X-420 has many advanced features such as the ability to initiate a connection to remote servers, BASIC programming, SNMP, email alerts, peer-to-peer communications, internal monitoring, graphing, etc. No software is required for setup or operation.

The ControlByWeb product line facilitates systems integration by offering Modbus/TCP functionality and simple XML control pages. You can also remotely access your Webrelays by using the CBW Mobile App and/or CBW Cloud.

This model supports HTTPS, SSL, has 2 digital I/O, 4 analog inputs, 1 frequency input and 1-Wire bus for 1-16 sensors. The required power supply is 9-28Vdc. The model with PoE can be found below.

More information is available on the website of ControlByWeb.
