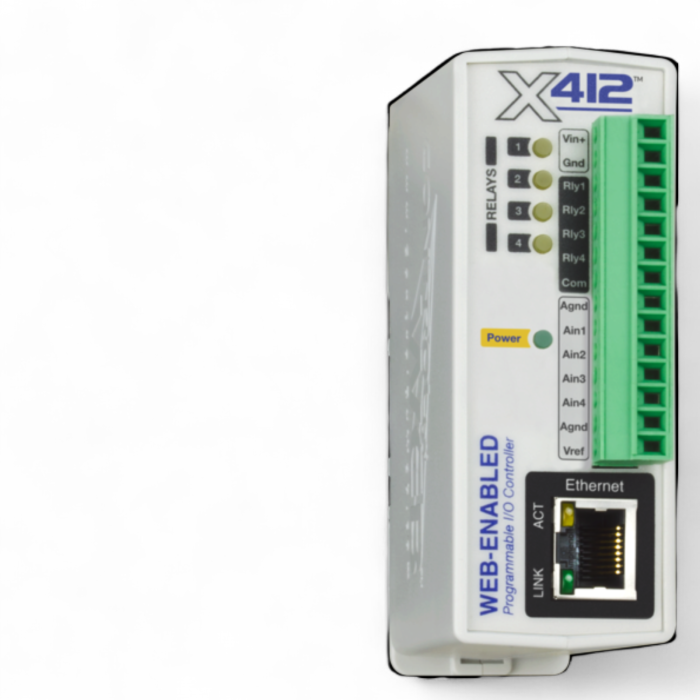

Web-Enabled 4‐Channel Relay & Analog Input Module - PoE

The X-412 is a full-featured, web-enabled, programmable Ethernet I/O module with four, independent 1-Amp relays, four analog inputs, and with an innovative solution for creating advance logic (tasks) without the need for scripting. Control, monitor, and log up to 100 inputs and/or outputs from up to 32 remote I/O modules using the X-412's intuitive web interface. It has non-volatile memory for logging, and a real-time clock for full-calender scheduling, which can be used to turn on/off relays at preset times. It can be controlled via the Internet or a local intranet.

The X-412 has many advanced features such as the ability to initiate a connection to remote servers, BASIC programming, SNMP, email alerts, peer-to-peer communications, internal monitoring, graphing, etc. No software is required for setup or operation.

The ControlByWeb product line facilitates systems integration by offering Modbus/TCP functionality and simple XML control pages. You can also remotely access your modules by using the CBW Mobile App and/or CBW Cloud.

This model supports HTTPS, SSL, has 4 relays (1A@28V) and 4 analog inputs. The required power supply is PoE and/or 9-28Vdc.

More information is available on the website of ControlByWeb.
