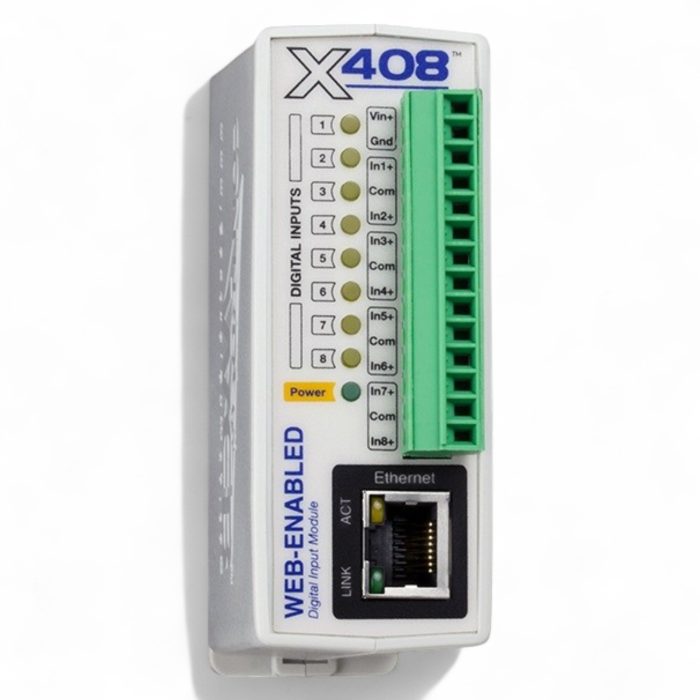

Web-Enabled Digital Input Module

The Digital Input module is a robust, full-featured, Ethernet based data acquisition device with eight optically-isolated discrete inputs. The state of the inputs can be monitored over the network using a web-browser, Modbus/TCP, or XML formatted text. Each input can be used as an event counter capable of generating email messages when user-defined alarm conditions are met. In addition, the Digital Input Module can communicate peer-to-peer and trigger ControlByWeb relays located throughout the network.

The X-408 module is fully configured in minutes using a web browser. No additional software is needed.

The ControlByWeb product line facilitates systems integration by offering Modbus/TCP functionality and simple XML control pages. You can also remotely access your modules by using the CBW Mobile App and/or CBW Cloud.

This model has 8 opto-inputs (4-26Vdc). The required power supply is 9-28Vdc. The model with PoE is mentioned below.

More information is available on the website of ControlByWeb.
