Product description

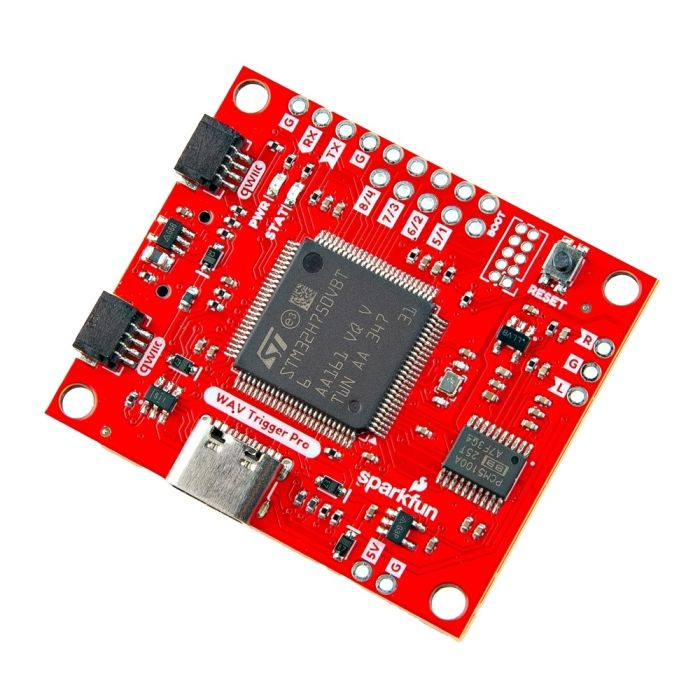

The Qwiic WAV Trigger Pro is the latest evolution of high-fidelity polyphonic audio players. The WAV Trigger Pro improves on the previous versions with a more powerful processor, enhanced MIDI processing - including velocity switching and multi-timbral support - and MIDI USB Device and MIDI USB Host support.
It supports up to 4096 uncompressed 16-bit, 44.1kHz mono, and stereo WAV files matching CD audio quality. The WAV Trigger Pro supports polyphony and can play and mix up to 24 tracks simultaneously and independently with exceptionally low latency (2-3ms typically). Control track playback via eight programmable trigger inputs, I2C (Qwiic), or MIDI (USB or Serial UART).Â
Audio output is over two unbalanced channels (Left & Right).Â
The WAV Trigger Pro also includes a new feature: Presets. Presets are spreadsheet (.csv) files that describe up to 8 actions per MIDI note based on channel and velocity. These actions can toggle an independent track with specific gain, balance, attack, release, and pitch. This allows multiple sounds to be mixed during the performance.
More information is available on the website of SparkFun.
