Quick-Connect Temperature Sensor

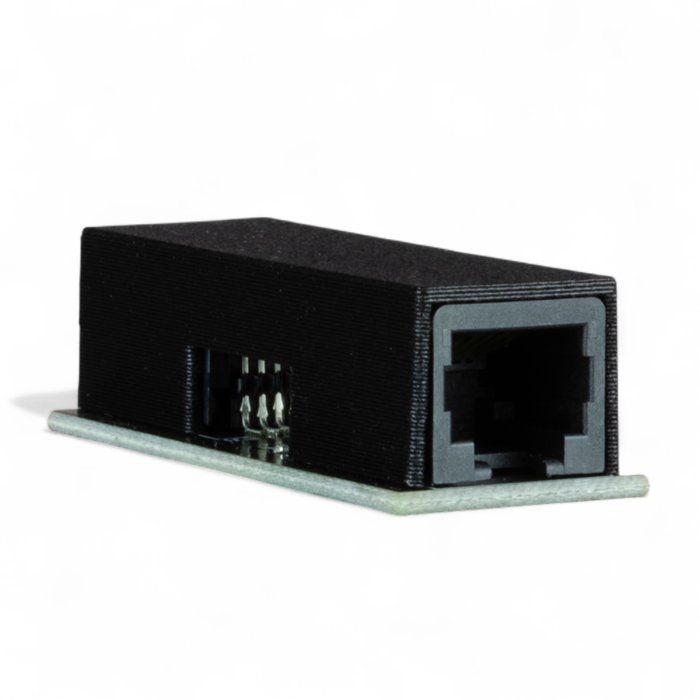

Simplify ambient and contact temperature measurement with the Quick-Connect temperature-monitoring solution. The Quick-Connect Sensor (X-QCS) is a single temperature sensor that can be daisy-chained for accurate data capture. The Quick-Connect Adapter (X-QCA) allows the X-QCS to interface with ControlByWeb IoT controllers. The latest 400 Series firmware automatically configures sensor IDs and each sensor’s place in a chain, eliminating the need to manually configure each sensor one at a time.

• Sensor Temperature Range: -55°C to +150°C
• Shell Temperature Range: Up to 60°C
• Accuracy: ±0.1°C (Typical), ±0.9°C (Max)
• Thermally Conductive Adhesive: Filled acrylic polymer tape to adhere to any surface
• Sensor Function (when connected to a 400 Series module): Monitor Temperature, Log Temperature, Email Alerts, SNMP Traps
• Connector Type: RJ11 Requires a 4-6 conductor straight through cable with an RJ11 connector
• Max Cable Length: 180m maximum combined cable length

More information is available in the datasheet and on the website of ControlByWeb.
