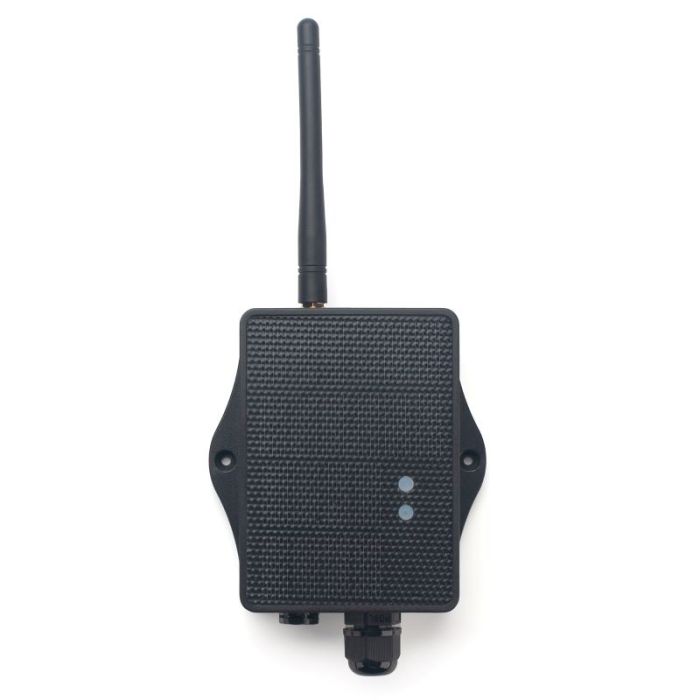

PS-NS-NA - Solar Powered NB-IoT Analog Sensor Node

Dragino PS-NS-NA is a NB-IoT Analog Sensor Node for Internet of Things. PS-NS-NA has 5V and 12V output to power an external sensor. Analog inputs include 4~20mA and 0~30V. The node will convert the analog value to NB-IoT wireless data and send to IoT platform via a NB-IoT network.

You can use various IoT Servers and different uplink methods including MQTT, MQTTs, UDP and TCP.

The sensor node uses Quectel BC660K-GL Multi-band LTE Cat NB2 module which can be used in most European countries. It has a card slot for an NB-IoT SIM card. Ask your mobile operator about availability of SIM cards, coverage, frequencies used and login procedures before you buy this product. See for example Deutsche Telekom IoT and 1NCE.

This device supports BLE for easy configuration and wireless OTA to update the firmware.

PS-NS-NA is powered by a rechargeable battery and a solar cell for continuous use.  It has an external antenna and an IP66 enclosure with a waterproof M12 cable hole for an external sensor.

More information is available in the datasheet and on the website of Dragino.
