Open Logic Sniffer Probe Cable

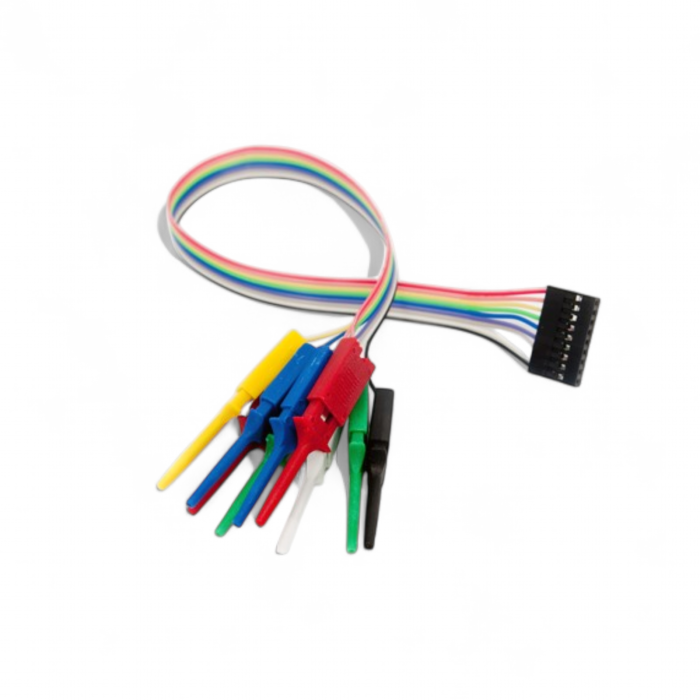

This is the probe cable for Open workbench Logic sniffer. It has a 1×9 connector and 9 leads with tweezer-style test clips. These are the same tweezer-clips used on two leads of the Bus Pirate probe cable. Each cable connects 8 of the 16 buffered input channels, plus ground. Two are needed for all 16 buffered channels.

This cable can also be used for Bus Pirate 5. Only Vout is not connected.
