Ethernet Module with 2 Relays

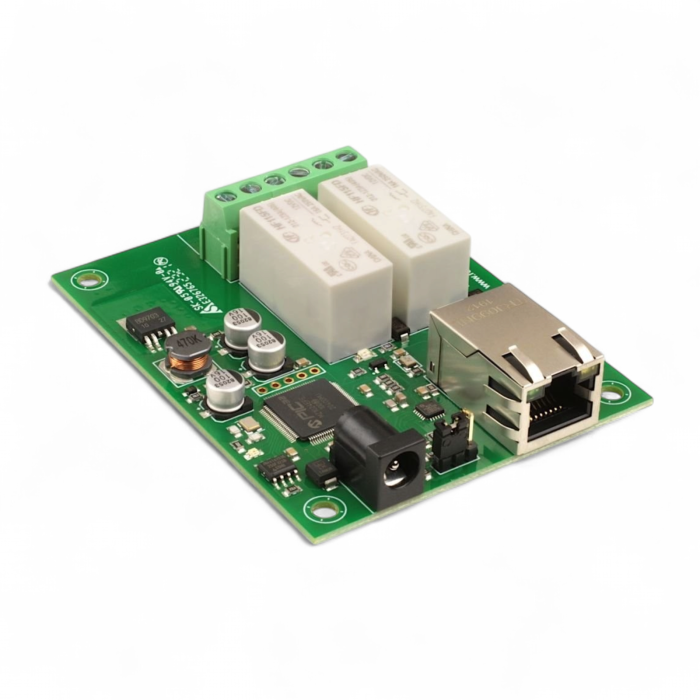

The Devantech relay module has an Ethernet interface and 2 relays with a current rating of 16Amp (24vdc or 250vac). The relays can be controlled by clicking on a web page or by TCP/IP commands.

A free Android App or iPhone App (see also the manual) can be used for remote control with the smartphone. If you set up port forwarding on your router, you can also control the module via the internet.

New features and improvements of the ETH002-B are 100mb full duplex Ethernet connection (ETH002 was 10mb half duplex), hostname is configurable and support of MQTT with optional TLS encryption.

This board needs a power supply of 12V 0.5A.

More information can be found on the website of Devantech.
