Remote I/O Controller - 8 Ports
Buy 10 and save 5%:
€235.59 €194.70
Product description

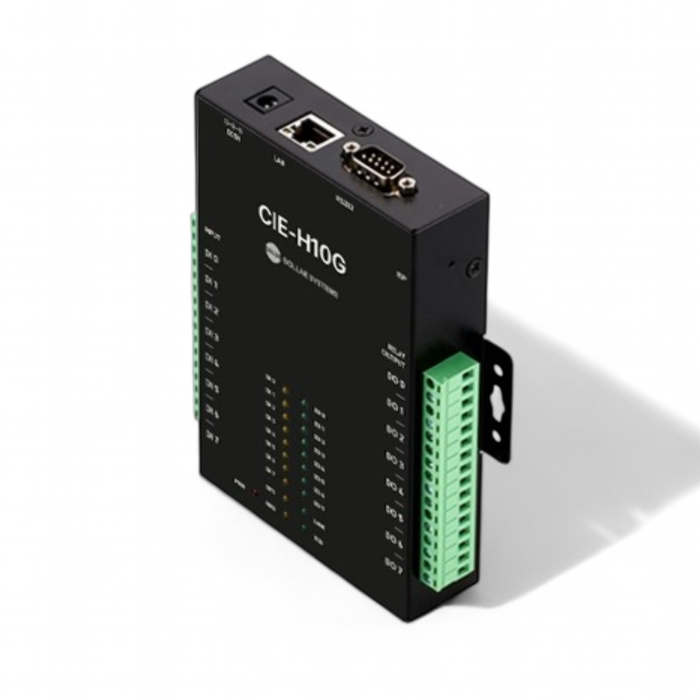

With the CIE-H10 you can monitor the state of 8 inputs and control 8 relays via Ethernet/internet.
The switching output is equipped with a relay contact (5A 28V). The remote monitoring of the inputs and the control of the outputs can be done via a simple web interface. Even more versatile is the control via Modbus/TCP, the TCP variant of the open, industrial communication protocol Modbus.
The CIE-H10 can be configured using the ezManager software/apps.

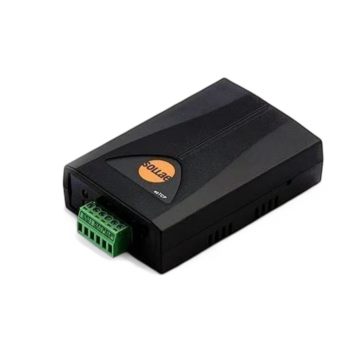

You can use two CIE-H10 to perform an Internet switch without the need for a PC. The settings are in the Internet Switch Technical Document. It is also possible to combine the CIE-H10 with the CIE-H12 which has 1 input and output. See Combination of I/O Controller Technical Document.
The CIE-H10 supports Modbus/TCP, HTTP and simple macros. The CIE-H10 can be operated with the ModMap app for Android and iOS.
ModMap for Windows is available to manage multiple I/O controllers and monitor the inputs and outputs.
Power supply voltage is 5V (not included).
More information is available on the website of Sollae Systems.
